Bio Company Berlin

Overview

Name   Bio Company
Demonstrator   Bio Company GmbH
Location   Berlin, Germany
Start date   15/07/2020
Heating capacity   46.0 kW
Cooling capacity   21.2 kW
Refrigeration capacity   32.1 kW

* based on the following design conditions: summer 17.5°CWB indoor and 37.0°CDB ambient; winter 21.0°CDB indoor and -14.0°CDB ambient; refrigeration Te= -8.0°C (system 1), Te= -4.0°C (system 2)

Bio Company in Walther-Schreiber-Platz in Berlin, Germany

Photo: Entrance of the shop.

Bio Company demoshop is a 860 m2 food retail store in Walther-Schreiber-Platz in Berlin where two CO2 Conveni-Pack systems have been installed.

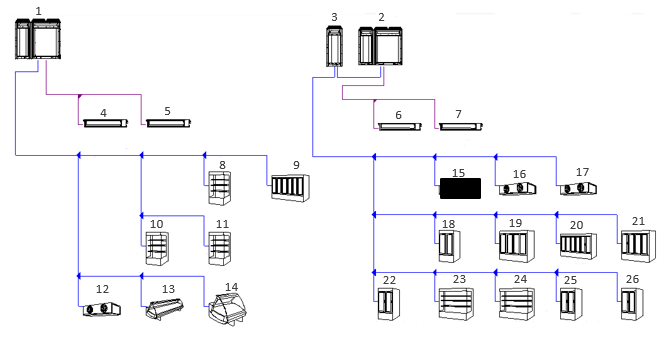

Picture: Integrated HVACR installation of the Conveni-Pack system in the demoshop.

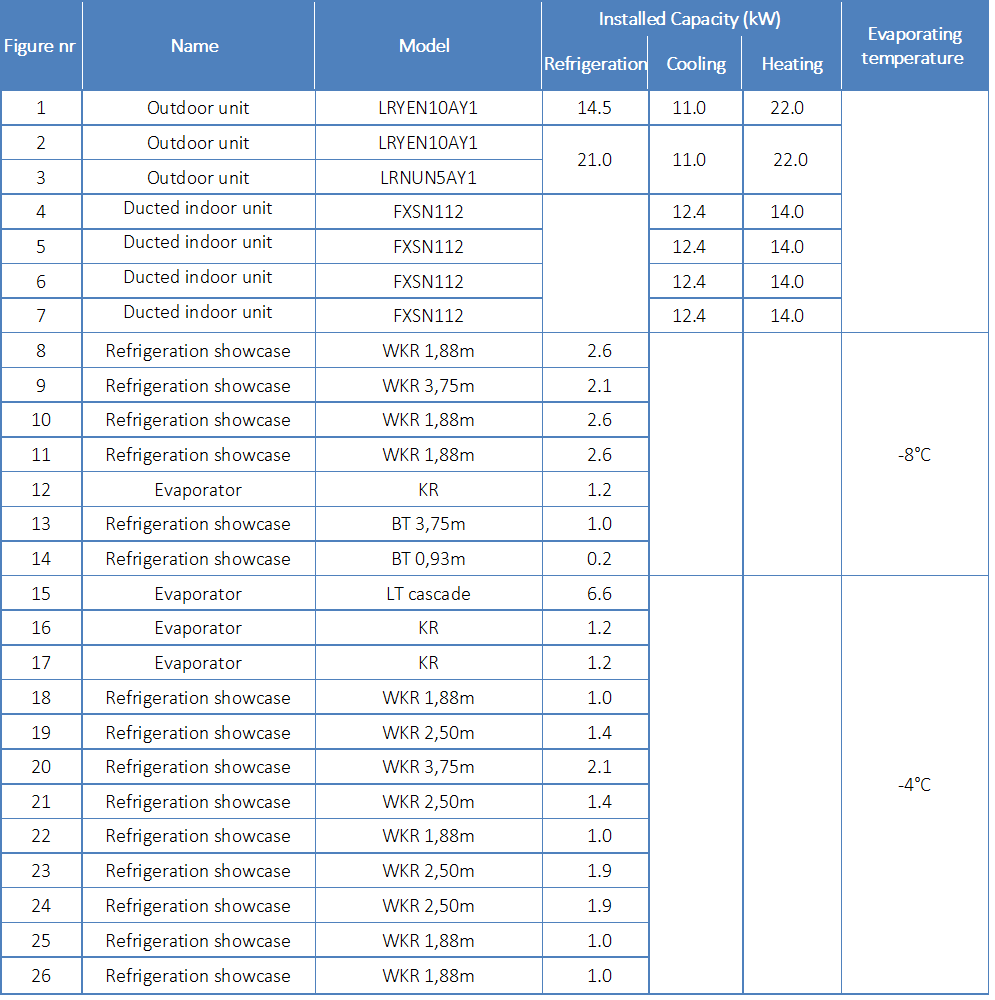

Table: Equipment overview.

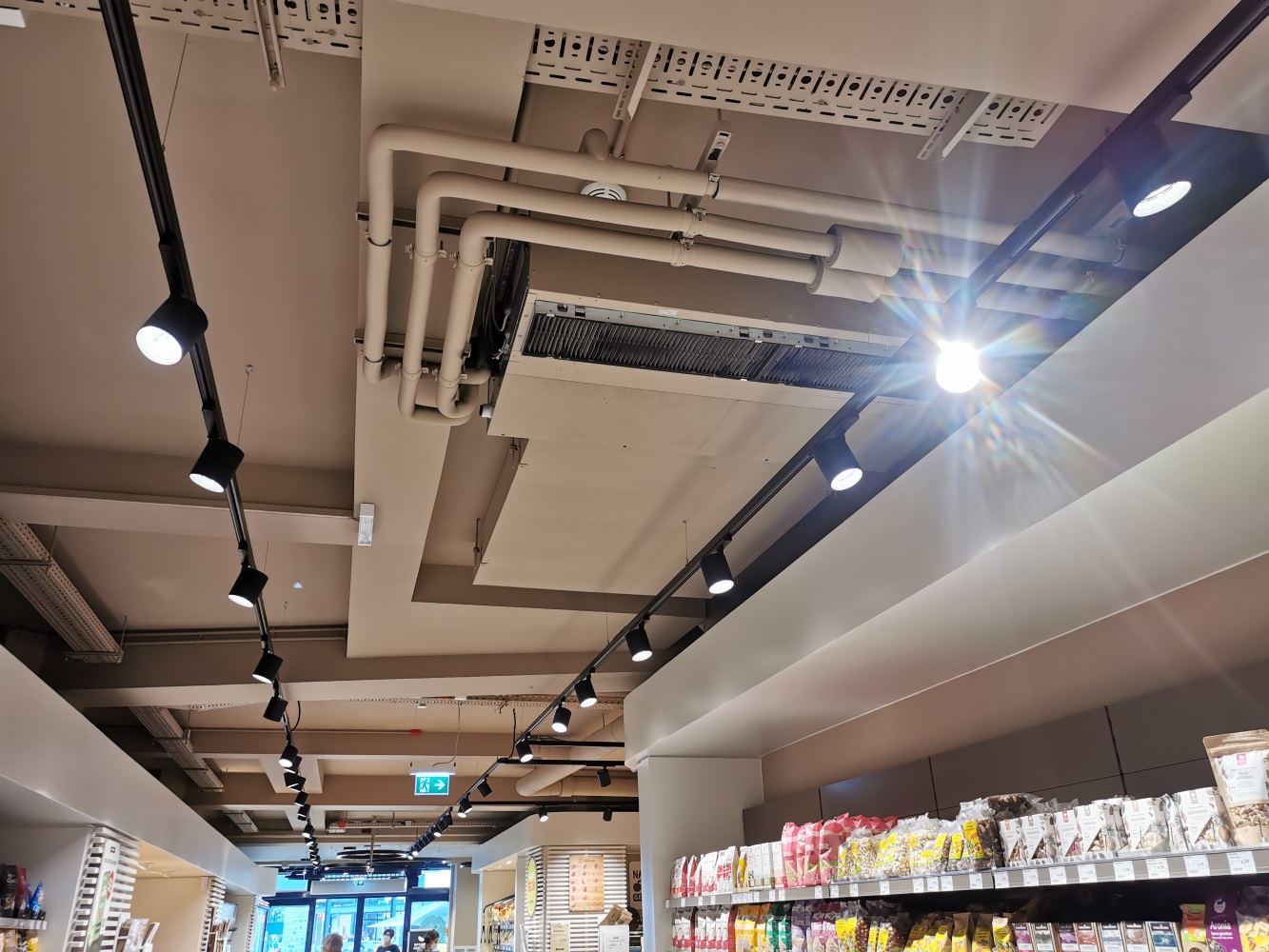

Photo: Indoor installation under the industrial style ceiling.

Photo: Fresh fruits and vegetables corner.

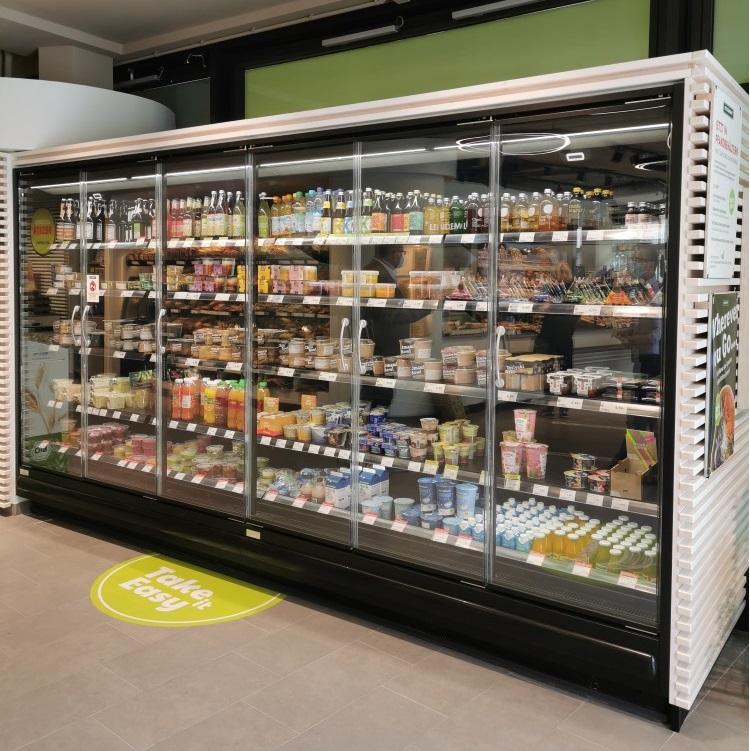

 Photo: Chilled Refrigerated Remote Cabinet (CO2).

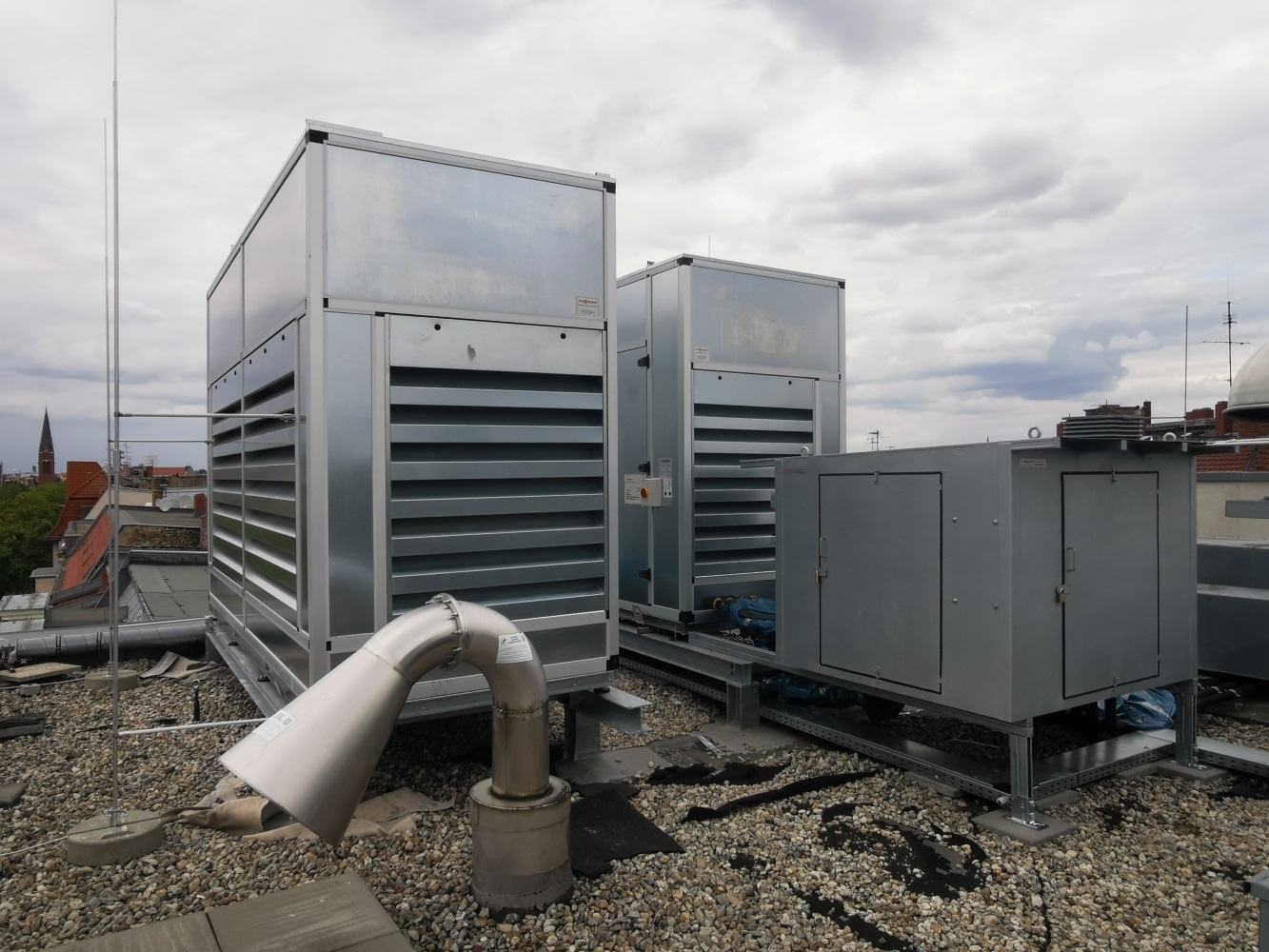

Photo: Outdoor units in the sound proof cases.

Photo: Bio Company building with the outdoor units placed on the roof.
